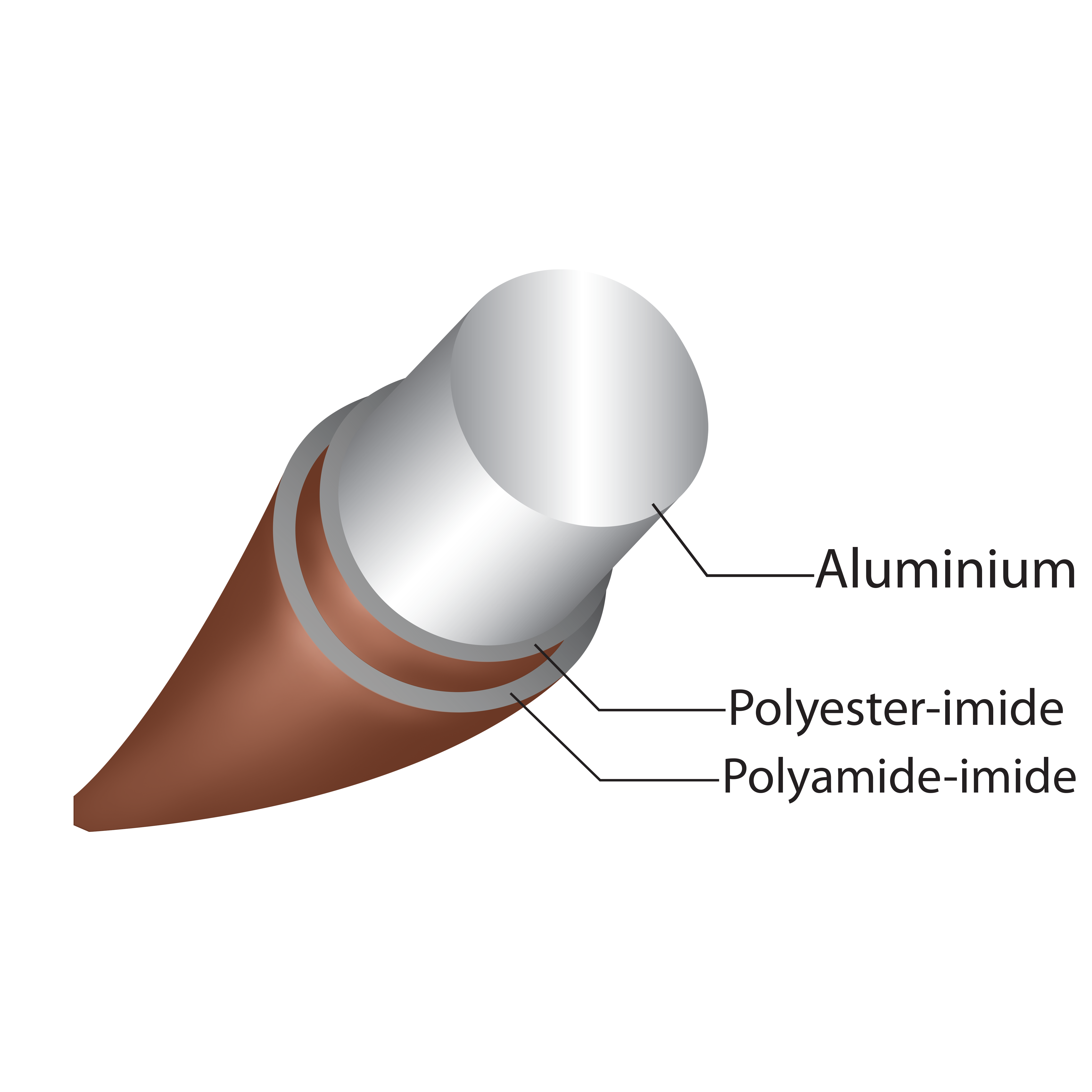

POLYESTER IMIDE OVERCOATED WITH POLYAMIDE-IMIDE ENAMELLED ROUND ALUMINIUM WIRE EI/AIW
Heat Resistance Grades:
155°C (F Class), 180°C (H Level), 200°C (C Class)
Diameter Range:
0.20mm - 6.00mm
Implementation Standards:
IEC 60317-25
GB7095.6 JIS-3202
JIS3215-0-3
Reference Standards:
NEMA MW1000-1997
IEC-60317
JIS-3202
Performance Features:
High thermal and chemical properties, suitable for high speed winding, light weight, good solderability,
high frequency resistance, resistance to freeze, higher heat shock. Radition and solvent resistance.
Application:
Widely used in various type of home appliance motor, transformer, compressor, rectifier, automobile motor and special motor, generator, relay, solenoid, alternator, telecommunication,
T.V. and electronic component, high power motors, hermatic motors, refrigeration compressor.
