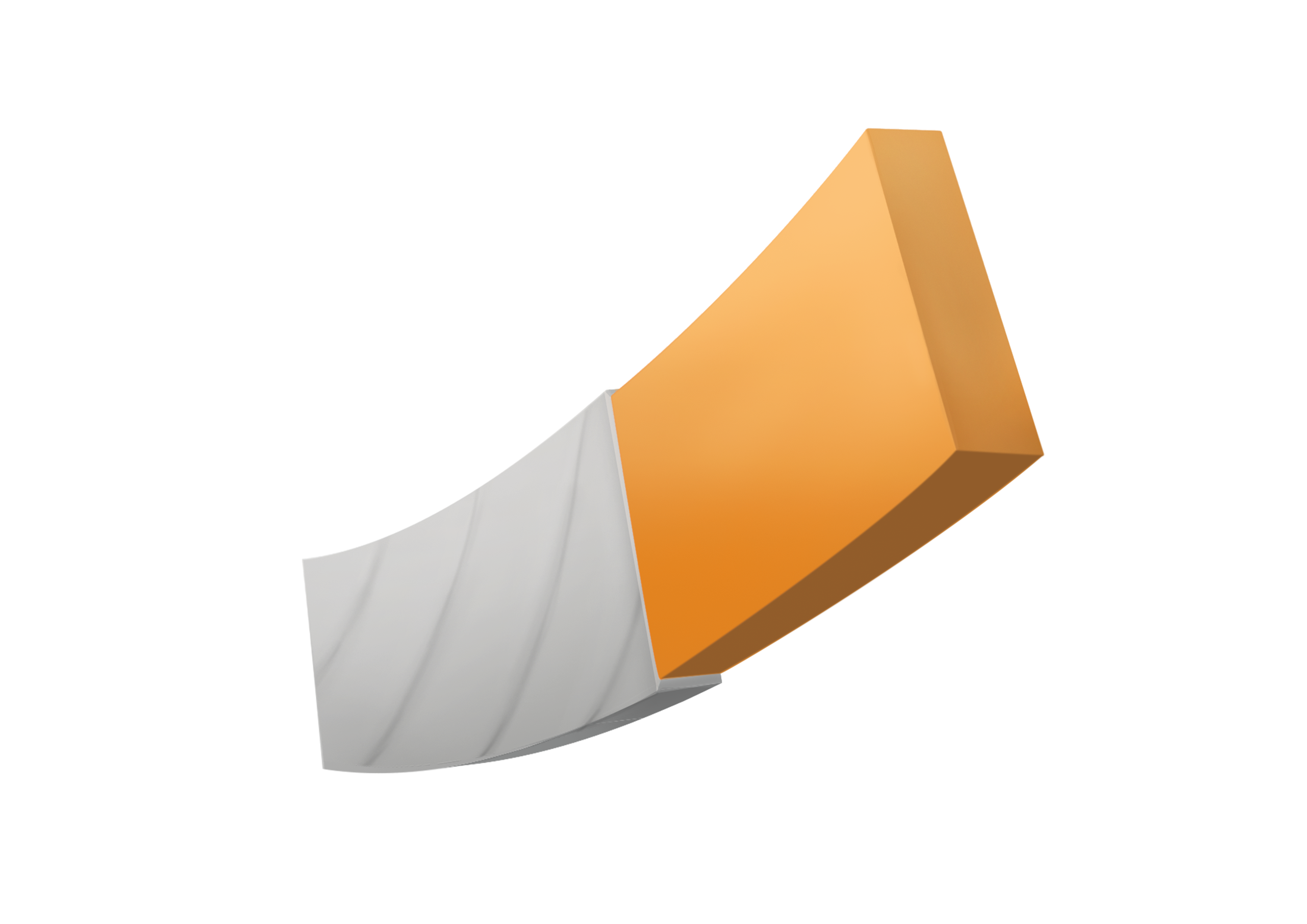

PAPER/NOMEX COVERED RECTANGULAR WIRE
Conductor:
Copper, Aluminium
Heat Resistance Grades:
200°C
Diameter Range:
Thickness: 1.2mm-10mm
Width: 3.0mm-25mm
Insulation Material Type:
Kraft Paper, Nomex Paper 410 DuPont
Insulation Thickness:
Single, Double, Triple, Multi layer.
30-50% Overlapped, interlocked; in various combination, layer and tape widths according to customer specification.
Implementation Standards:
IEC 60317-27 GB7673
Application:
Power and distribution transformers, Choke coils, Dry Type and oil filled transformers, Dry
type transformers, High tension motors/generators, Tractor equipments.
