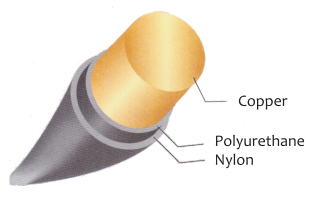

SOLDERABLE POLYURETHANE NYLON ENAMELLED ROUND COPPER WIRE UEW/Y
Heat Resistance Grades:
130°C (B Class), 155°C (F Class), 180°C (H Class)
Diameter Range:
0.010mm - 6.00mm
Implementation Standards:
GB6109
GB4074
Reference Standards:
NEMA MW1000-1997
IEC-60317
JIS-3202
Performance Features:
Good winding performance in high speed winding so as to reduce friction. Good pin hole performance, good solderability with high thermal properties.
Good resistance to high frequency, solvent-resistance performance.
Application:
Mainly used as the winding wire of household appliance, electronic instrument, telecommunication meter and the connecting line of electronic equiment.
It is also widely used in the IT industry, appliance motors, encapsulated coils, solenoids, transformer, toroids.
