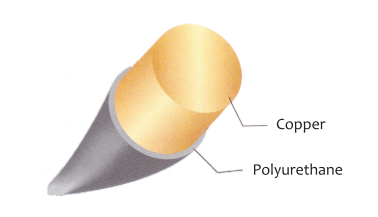

SOLDERABLE POLYURETHANE ENAMELLED ROUND COPPER WIRE UEW

Heat Resistance Grades:
130°C (B Class), 155°C (F Level), 180°C (H Level)

Diameter Range:
0.010mm - 6.00mm

Implementation Standards:
GB6109
GB4074

Reference Standards:
NEMA MW1000-1997
IEC-60317
JIS-3202

Performance Features:
Very good direct solderability and insulation. It has high thermal properties and good resistance to high frequency. Good result in humidity - resistance performance and performance in high speed winding.

Application:
Small transformers, timers, relays, small motors, solenoids, clock coils, watch coils, ignition coil, magnetic heads, instruments, household appliances and electronic equipments.
